DxFLEX IVD

DxFLEX is a new clinical CE-IVD flow cytometry platform derived from the successful CytoFLEX. The advanced sensitivity and intuitive software DxFLEX makes flow cytometry routine for both novice and expert flow cytometry technicians and promotes standardization. Functionality in the autoloader facilitates accurate results and sample tracking.

ÁRAJÁNLATOT, INFORMÁCIÓT KÉREK!

Leírás

DxFLEX Flow Cytometer

A compact design, intuitive software, up to 13-color detection and an enhanced optical path for increased sensitivity ensure accurate results and makes flow cytometry data collection easy even for novice users.

Wavelength Division Multiplexing (WDM) detection modules offer superior signal resolution
Simplified system settings, data acquisition & result export functions
Different instrument configurations available with up to 3-laser and 13-color detection
Optional DxFLEX Autoloader decreases the hands on time with multiple tube loading and plate loading*
Compact design for use in biological safety cabinets

DxFLEX is an IVD instrument that is available only in countries where the regulatory approval is obtained from the local regulatory agencies. Please check with your local sales representatives before placing your orders.

* Plate adapter: Regulatory status differs by region, please consult your local sales representative.

Műszaki specifikációk

Flow System

Inlet system for 12×75 mm & micro-scale sample tube loading via single tube loader(up to 30,000 events per sec)
DxFLEX Autoloader is compatible with 32-tube carousel and 96-well plates*
Preset cleaning & maintenance programs with automatic maintenance reminders for easy maintenance
Three preset sample rates (high; medium; low) plus user-controlled option

* Plate loading is not available as CE-IVD

Intelligent Software

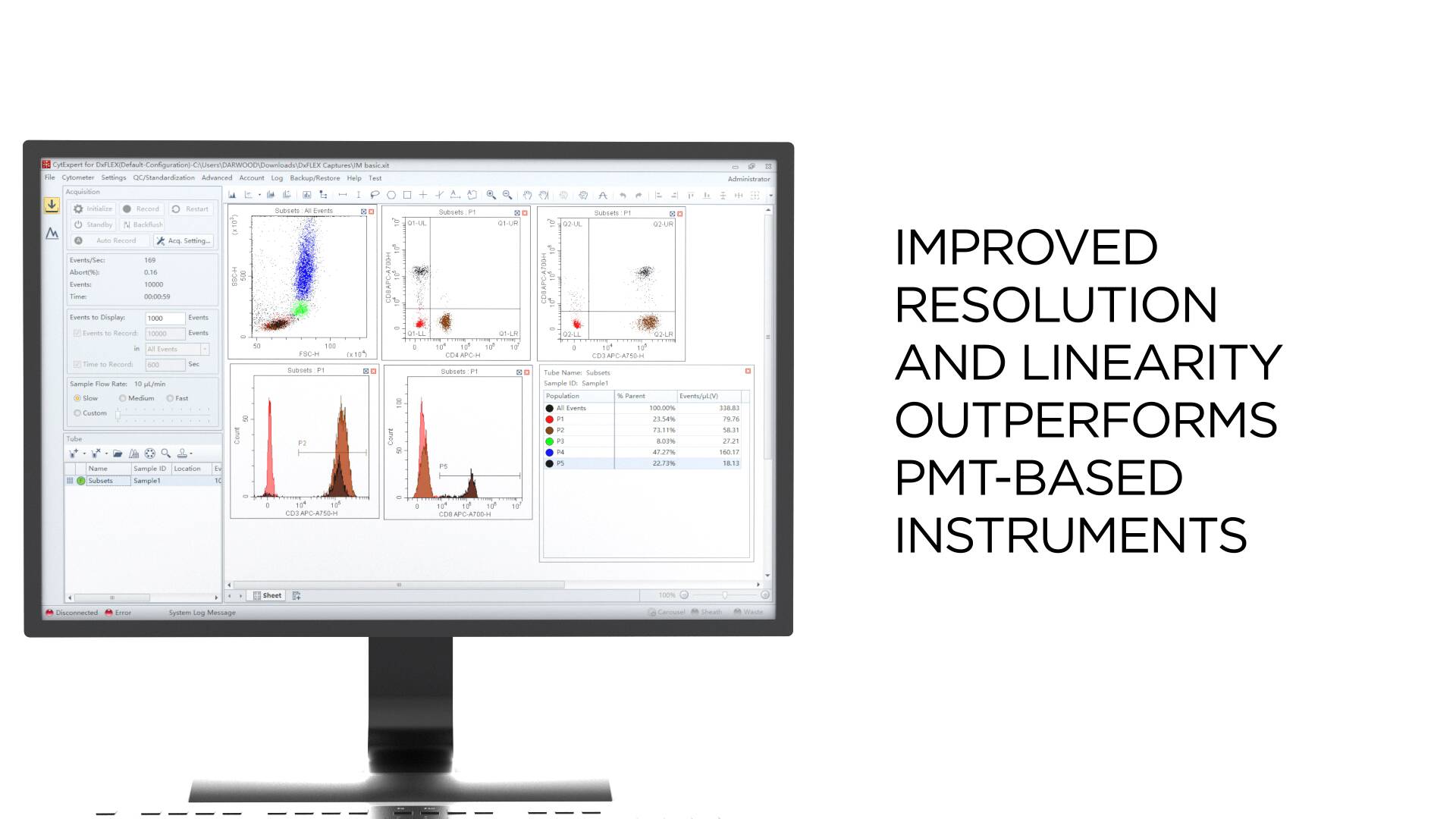

Simple intuitive interface & automated parameter optimization for improved work efficiency
Graphical operating tools for adjusting threshold, gain, compensation & more directly on results graph
Convenient compensation library stores compensation values of fluorescent dyes in multicolor experiments for future use
English/ Chinese bilingual interface

Standardized QC

Automated instrument quality control procedures & reporting (laser delay/power, channel gain, mean fluorescence intensity, rCV) for more reliable stable results
Standardization procedure can be used to monitor Median Fluorescent Intensity (MFI) and track gain changes for assays.

Optical System

The DxFLEX flow cytometer uses Avalanche Photodiode detectors instead of PMTs. The low electronic noise contributes to the resolution capabilities of the instrument.
Wavelength Division Multiplexer uses bandpass filters to deconstruct the light and efficiently deliver to the detectors by fiber optics.

Applikációk

DxFLEX Example Data

The DxFLEX flow cytometer is flexible enough to accommodate a variety of assays. Instrument performance provides the capabilities to resolve populations facilitating complex gating analyses.

Large File Sizes Accommodate Rare Event Analysis. More than 25 million events can be saved in one file with all channels. Use multiple gates and create combo gates to correctly define the target population for complex data analysis.

DURAClone B27

Ease differentiation of HLA B27 positive samples from negatives, using lot-specific Determinant Value and Indeterminant Zone.
